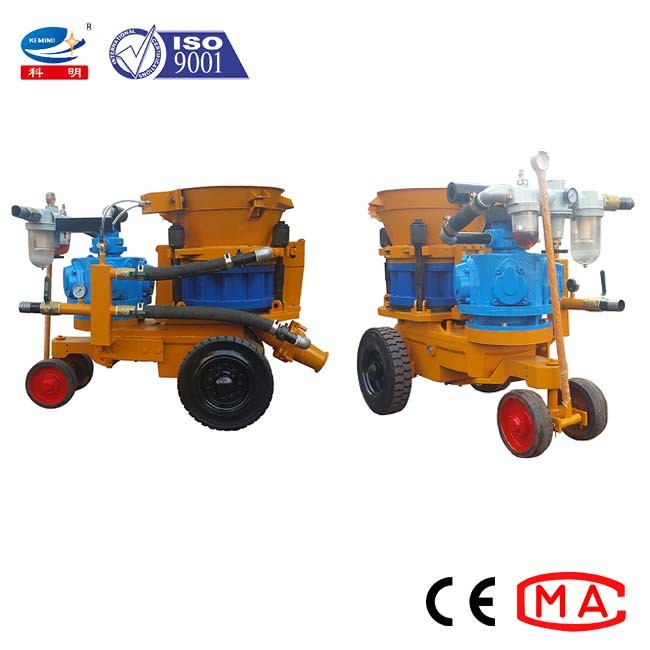

Air Driven Portable Shotcrete Machine Convenient Operation Stable Performance

  • 1
  • 2
  • 3

Brand Name : KEMING

Model Number : KPZ-7A

Certification : CE,MA

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Per Month

Delivery Time : 10~20 Work Day

Packaging Details : Export Wooden Case

Capacity : 6~7m3/h

Pressure : 0.6Mpa

Max aggregate : 20mm

Main power : 6.5kW

Horz. distance : 100m

Vert. distance : 40m

Contact Now

Air Driven Dry Or Damp Mix Concrete Spray Machine In Variable Output 6~7m3/Hour

Shotcrete Machine Parameters:

Model
KPZ-7A Pneumatic Shotcrete Machine
Capacity
5.5-6.5 m3/h
Max. conveying dist.
≤150 m
Water-cement ratio
≤0.35
Max. aggregate size
20 mm
Delivery hose ID.
φ51/57 mm
Working pressure
0.2-0.6 MPa
Air consumption
9 m3/min
Air consumption of air motor
8 m3/min
Dimensions(Length×width×height)
1520×850×1350 mm
Total weight
950 kg

Shotcrete Machine Features:

1. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).

2. KPZ-7A Pneumatic Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, air motor etc.

3. KPZ-7A Pneumatic Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

Shotcrete Machine Application:

1. KPZ-7A Pneumatic Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.

2. KPZ-7A Pneumatic Shotcrete Machine can be used for Dry Or Damp Mix concrete spray construction.
